How about a little closer.
![[image]](http://paddleupstream.com/mohorebuild/passengersideunderfrontwindow1.jpg)
If you want to do something, you will find a way.
If you don't, you will find an excuse.
-------------------------------------------------
Good judgement comes from experience.
A lot of experience, comes from bad judgement.
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
Maybe a little more..........
![[image]](http://paddleupstream.com/mohorebuild/passengersideunderfrontwindow2.jpg)
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
And yes, it looks pretty much like this in real life. This time, it's not just the bubbling of the glue, with the steel being fine underneath.
There is too much pitting to allow this to stay in.
![[image]](http://paddleupstream.com/mohorebuild/passengersideunderfrontwindow3.jpg)
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
So, the bottom line is, everything with a red line through it, is going to have to be replaced with new steel.
There is a high likelyhood, that the stuff with the yellow lines will have to be replaced also.
The yellow lines are the pieces of steel under the trim, which the front cap is pop riveted to.
So, what that means is, all of the steel in both walls will have been replaced, by the time I am done. All of it.
Apparently in order for this rv to stay in good shape, as far as making sure nothing would leak over the years ....... would require periodically removing every screw, pop rivet, piece of trim, all of the caulk, and replace with new caulk, new sealed pop rivets, new sealed screws, etc.
![[image]](http://paddleupstream.com/mohorebuild/passengersideunderfrontwindow4.jpg)
So, obviously, this design doesn't work over the long term. Putting things back together using the same design, will, over time, yield the same results.
Time to do something different, on re-assembly.
|
twichers
Navarre, FL
Full Member
Joined: 05/11/2008
View Profile
 Offline
|
great stuff! and a heckuva journey!
|
|
|
Bruce Brown
Northern NY
Moderator
Joined: 06/01/2001
View Profile
Good Sam RV Club Member
|

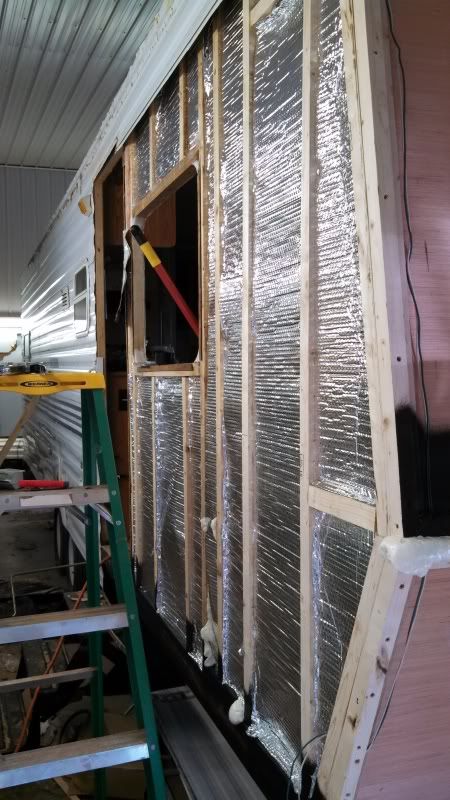

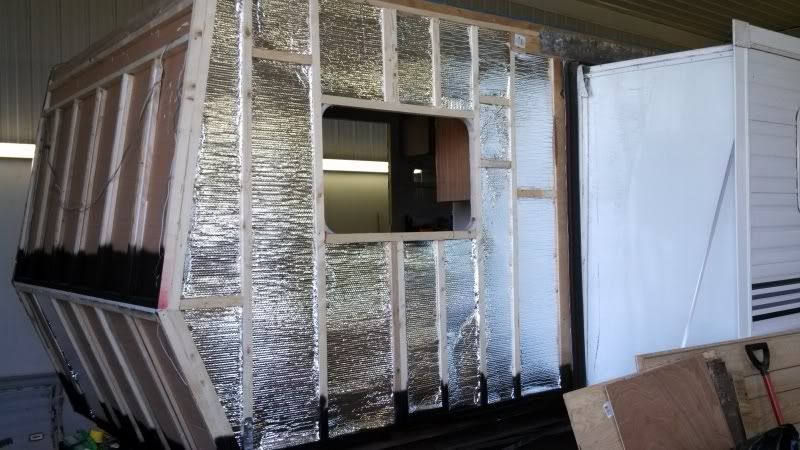

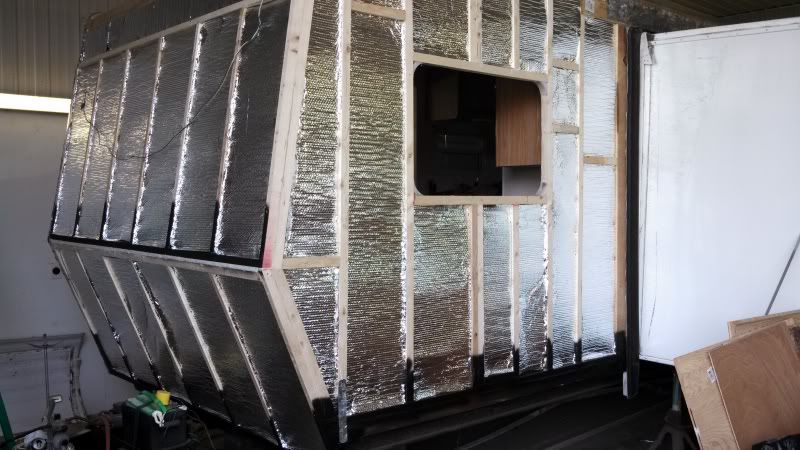

Here are a few insulation pics;
![[image]](http://i157.photobucket.com/albums/t63/lppartsopen/Camper%20Rehab/IMG_20130824_170314_976.jpg)
![[image]](http://i157.photobucket.com/albums/t63/lppartsopen/Camper%20Rehab/IMG_20130825_123912_517.jpg)
![[image]](http://i157.photobucket.com/albums/t63/lppartsopen/Camper%20Rehab/IMG_20130825_133438_527.jpg)
There are 24 hours in every day - it all depends on how you choose to use them.
Bruce & Jill Brown
2008 Kountry Star Pusher 3910
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
Nice job Bruce. Is there an airspace between the insulation and the inside paneling also?
|
Bruce Brown
Northern NY
Moderator
Joined: 06/01/2001
View Profile
Good Sam RV Club Member
|
There is. The dual air gap is why I think it worked so well.
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
twichers wrote:great stuff! and a heckuva journey!
Thank you!
|
fulltimin
Home is where we Park It.
Senior Member
Joined: 12/14/2003
View Profile
|
So, here we are ready to remove this section of the side wall.
I made cuts inside the red circles, shown with the red lines. After making those cuts, this whole assembly just came off, in one piece.
The yellow circles, indicate where screws were holding this section of steel in, but they were screwed in from the back side. More on that later.
![[image]](http://paddleupstream.com/mohorebuild/passengersideunderfrontwindow5.jpg)
|
|
|
