How thick is our walls? The reason I ask, is that my front window still leaks and leaks in Alaska stink.... I am researching options to replace with a newer style that won't leak in Alaska winds and rain. So I have aC10, but I believe that the C11 should be e same.
Thanks!
Garry
Garry K
Wife + 4 kids
Retired Military Family.... Alway's on the move....
2002 F350 CCSB 5.4 6spd 4x4 in AK
1966 Avion C-10 Truck Camper
Have you been able to trace were the leak is coming from ? It might just be a matter of removing and reinstalling with fresh caulking . I didn't have a problem with the front window , and have driven through some heavy rains .
The two areas I would look at is the top seal/flap , make sure is covers the ends of the sash and hasn't shrunk . The other is the bottom seal for the same reason .
'68 Avion C-11
'02 GMC DRW D/A flatbed
I too have thought about upgrading the windows but concluded that the period camper look is important enough to me to really work on getting a good seal. To that end, below is a link to a butyl tape used in marine applications to seal joints and bed hardware on deck. I have found it to be so superior to anything else on the market that you may wish to check it out. I bought some "RV bedding tape" a few years ago to bed some deck hardware on my sailboat. After discovering this butyl tape, I removed and rebedded the same hardware. There's no comparison in the products. I'm using this butyl tape around all the windows and the door, along the joints where the main panels meet the edge molding, between the tread plate on the bottom of the camper and the bottom of the aluminum frame. I'll probably find other places as I go along. The guy who developed this tape is a very thoughtful and sensible fellow who calls himself "Maine Sail". You can read his posts and see his excellent videos, many of which are entirely appropriate to truck camper work, from the "Compass Marine How To" articles at the top of this page.
http://www.pbase.com/mainecruising/butyl_tape
BTW, I've never met this guy and have no connection with him or his business other than to admire the way he thinks through and executes his projects. And documents them really well!
Cheers!
Dick

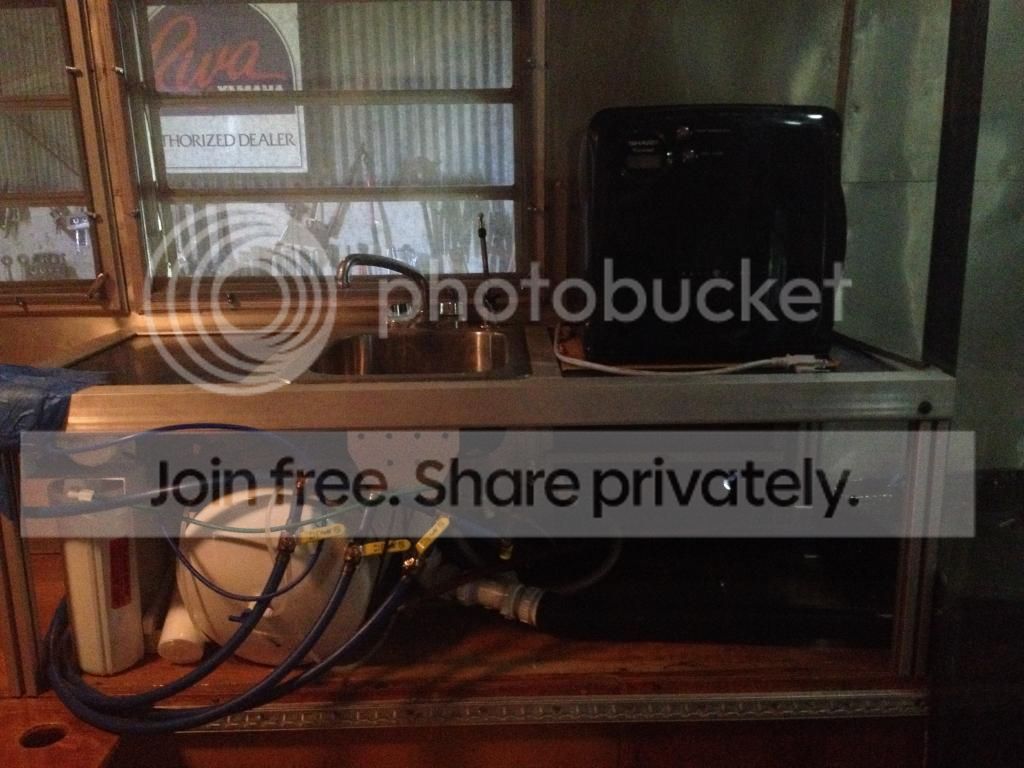

Okay now to get all this stuff in under the kitchen sink!
I know dimensionally it all fits, but future access
is the deal breaker.
![[image]](http://s1014.photobucket.com/user/cajunavion/media/0C2CD6BD-338E-455F-AFCA-96A46B279ED7_zpsflqxt0wn.jpg.html)
67avion wrote:
Don't mean to blow my own horn.....but we made the TCM calendar for the year. Probably the first Avion C-10 on a calendar in many a moon!
http://www.truckcampermagazine.com/campe........announcing-the-2015-tcm-calendar-winners
Don't mean to blow my own horn.....but we made the TCM calendar for the year. Probably the first Avion C-10 on a calendar in many a moon!
http://www.truckcampermagazine.com/campe........announcing-the-2015-tcm-calendar-winners
Congratulations on the picture in TCM. That was an awesome view. You are probably the first C-10 in TCM.
Ford F-350 4x4 Diesel
1988 Avion Triple Axle Trailer
1969 Avion C-11 Camper
![[image]](http://s1014.photobucket.com/user/cajunavion/media/05B572E5-C826-4250-AE0F-9FF868DB3CFF_zpsh0ispljg.jpg.html)
![[image]](http://s1014.photobucket.com/user/cajunavion/media/D02F238B-0068-4C93-8751-05B4C3C68A9F_zpsam5ubkqw.jpg.html)
![[image]](http://s1014.photobucket.com/user/cajunavion/media/3E887D9B-EEC2-4FD9-9053-F8F5B9BD368F_zpsalmsbdyh.jpg.html)

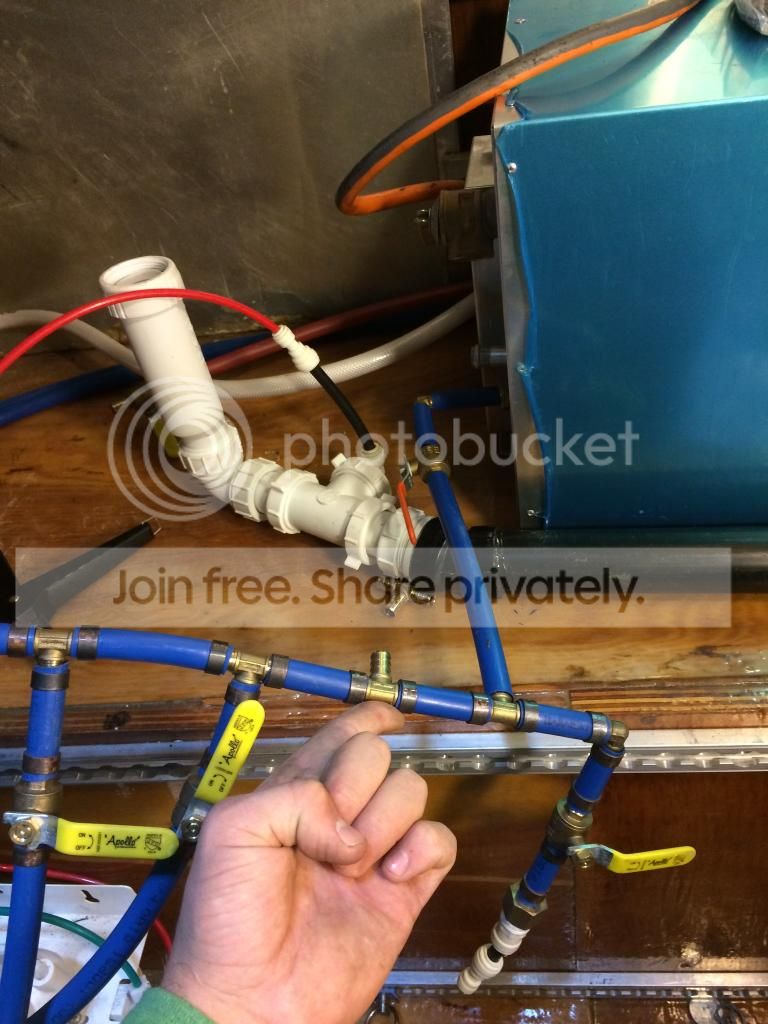

First up is to get the hot water heater installed
