beeryboats
Indiana
Full Member
Joined: 02/14/2010
View Profile
 Offline
|
Hi,
We just bought our first trialer, '06 Jayco, and it has the old analog antenna. How do you figure out where to aim the antenna with out having to re-scan all the channels on the new tv as you turn the antenna? I pluged everything in and aimed the flat side, wings out, toward downtown and only got two channels. Maybe I have it 180degs out? It seems silly to have to re-scan every time you move the antenna on notch as you try to find reception.
Thanks,
Jay
|
past-MIdirector
Michigan
Senior Member
Joined: 03/03/2007
View Profile
Good Sam RV Club Member
 Online
|
That what you have to do with digital TV. Go to www.TVFool.com and it will help you find the best directions for reception. Adding the batwing will also help your reception.
|
ccxnola
Wherever the rig is - I'm there too!!
Senior Member
Joined: 07/02/2003
View Profile
Offline
|
Jay,
I am no expert, but as I understand it - the 'old' antenna is OK - BUT...you need a need digital converter box to find the digital stations. With the assumption that you have same, then the reality is that the old analog stations are gone and only the local digital station are broadcasting. You need to find the direction to the local stations (one place is: http://www.antennasdirect.com/HDTV_station_lists.html)
then point your antenna that direction.
Yes, you will need to re-instruct your TV in every new location! Not fun, just the way it is!!
1997 Rexhall Rolls Air - mid-entry DP w/cummins c8.3
Look for the Mardi Gras 'Gators
Laissez le bon temps roulez - Let the good times roll !!
Click to see the Best View of our rig - That's ME, Going Away!!
|
beeryboats
Indiana
Full Member
Joined: 02/14/2010
View Profile
Offline
|
Thanks guys, but I'm wondering what side of the antenna is the best reception side? Or does it matter? I assume the wings sticking out the sides should be 90deg to the aim direction?
|
Peg Leg
Anderson, IN
Senior Member
Joined: 06/20/2004
View Profile
Good Sam RV Club Member
|
The ring that lets you turn the antenna has a pointer molded into it. Make sure you have the amplifier turned on. The pointing of the antenna is very touchy. Once you have the stations scanned in, you should be able to fine tune the station with out resscanning. The new stations are assigned to different frequencies, an example is Channel 8 CBS in Indy is now on cannel 9 and all of the others are higher in frequency. So your better to scan the channels if you can get a signal, you may have to scan with several different directions of the antenna.
2012 Chevy 3500HD Dually 4X4
Crew Cab long bed 6.0 gasser 4.10
31' Dutchmen TT
Yamaha EF3000iSE
retired gadgetman
|
|
|
othertonka
Stockton, CA
Senior Member
Joined: 11/15/2003
View Profile
Good Sam RV Club Member
|
You aim the flat side of the antenna toward the Transmitter you are trying to pick up. By flat side I mean the side opposite where the Coax Cable enters the bat wing antenna. Go to antennaweb.com and enter the zip codee of the location you are trying to receive the stations. It will give you a compass heading of where you need to point your antenna to receive that station and the distance it is away. You usually can get stations up to around 50 miles or so depending on line of sight. So if you don't really know North from south, you might want to visit a sporting goods store and buy a compass. SO if it says channel 3 is located 45 miles at 180 degrees, you point you antenna South (180) and then do a SCAN on your TV. If you move the antenna, you have to rescan each time.
Antenna Web
If you add a "Wingman" to your antenna, you might improve the reception. Here is a picture of an antenna with the wingman attached. The front of the antenna is where the wingman attaches and you would then point the front of the wingman toward the transmitter you found on the web site/
Wingman
Othertonka
2004 Southwind 32VS 8.1 Workhorse chassis
2002 CRV Toad
U. S. Gear Unified brake system
Retired Fire Captain, SFD
|
McZippie
USA
Senior Member
Joined: 10/21/2009
View Profile
|
I highly endorse this antenna for Digital TV. No pointing or adjustment required. Pulls in all our local channels 40 miles from broadcast towers and can drive without signal break-up 20 miles away.
I cut off the 120 volt two prong plug/12 volt DC adapter and replaced it with a 12 volt Radio Shack cig lighter adapter.

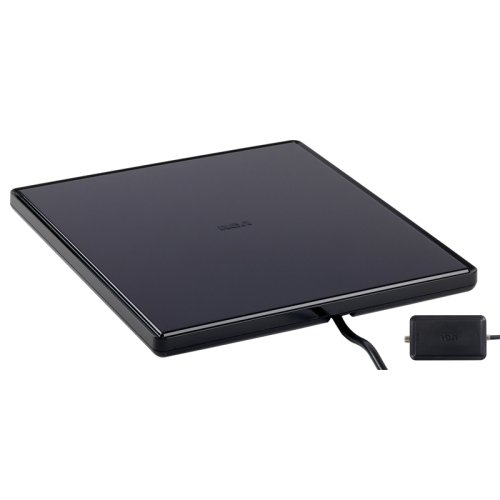

Product Description:
RCA ANT1650 flat indoor antenna is designed specifically for digital TV signals. Gives more precise directional reception than analog signals to provide consistent performance. Unique patented antenna design eliminates the hassle of manual adjustments by receiving signals from 360 degrees. Gives superior signal reception of local HD and all digital TV broadcasts. Supports 1080 resolution reception and outperforms traditional antennas. Enhances reception by amplifying weak signals with included removeable amplifier. Preserves signal purity with Extremely Low Noise (ELN) circuitry. Paintable antenna can be hung, laid flat or stood up with included black easel stand. Slim black profile disappears into its surroundings. Built in coax cable and 1 year limited warranty.
* This post was
edited 03/10/10 07:08pm by McZippie *
Tow Vehicle - 2009 Ford 6.0 Diesel - aka Walmart Boondocker
Toad - 2010 Jeep Rubicon Unlimited
Info Clicky
|
SCVJeff
Santa Clarita, CA.
Senior Member
Joined: 07/28/2006
View Profile
Offline
|
First, do NOT buy an omni-directional antenna. You already have the best you can get and it will out-perform an omni any day of the week.
This is the proper direction of the antenna:
Next, buy a Wingman! They just work. That's the extension off the Batwing:
And last, there is no getting awaw from pointing the antenna, the trick is knowing where to point without taking a full re-scan every 45 degrees. There is a device called a DigiAir Pro that will take what could easily be 30 min+ into around 30 seconds.HERE is a post I did on it awhile back.
PS, sorry for all the vertical space.I need to crop that drawing.
Jeff - WA6EQU
'06 Itasca Meridian 34H, CAT C7/350
|
foosh1
Annapolis MD
Senior Member
Joined: 11/19/2009
View Profile
Good Sam RV Club Member
Offline
|
SCVJeff wrote:First, do NOT buy an omni-directional antenna. You already have the best you can get and it will out-perform an omni any day of the week.
This is the proper direction of the antenna:
Next, buy a Wingman! They just work. That's the extension off the Batwing:
And last, there is no getting awaw from pointing the antenna, the trick is knowing where to point without taking a full re-scan every 45 degrees. There is a device called a DigiAir Pro that will take what could easily be 30 min+ into around 30 seconds. HERE is a post I did on it awhile back.
PS, sorry for all the vertical space.I need to crop that drawing.
Yep, no way to say it any better than the post above.
08 Winnebago Journey 39Z, Cummins ISB 350 & Allison 3000MH
US Gear Unified Braking System, Blue Ox tow equipment
10 Wrangler Toad
|
BobJoh
Whitestown, IN 46075
Senior Member
Joined: 05/23/2004
View Profile
|
My Access HD won't hold the channels after a sucessful scan.. when I turn it off at night I have to rescan the next day... But the other inour rear office is a Magnavox and it holds the channels and it uses just a old rabbit ears and in the bedroom on the HD I have two sixfoot wires out of the coax inlet. Both get all the local channels and the uhf ones also but the HD one looses the list when turned off.
BobJoh
|
|
|
