I have seen several posts on a exhaust pipe that clamps to the gen set exhaust that makes the exhaust exit higher than the RV.
What is this extention pipe called? Seems I read that this was store bought or a DIY type mod?
Tia,
Don
2010 F-350,6.4PSD, 6spd man trans,CC,SWB,SRW, Caravan camper shell,50 gal bed tank,17,000lb Husky WD hitch,2008 28KS Desert Fox TH,2005 Honda 500 Rubicon ATV w/rumble seat,2 Aussie's waiting,watching and ridin shotgun on the whole outfit.
|
Dutch_12078
Great Sacandaga Lake, NY
Senior Member
Joined: 10/07/2008
View Profile
 Online
|

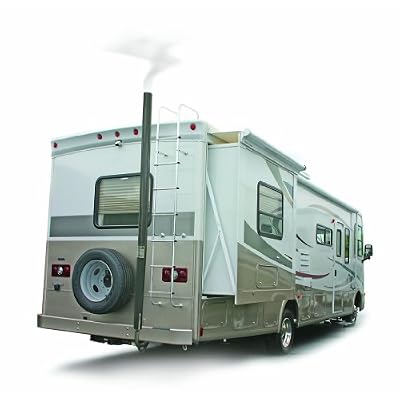

The commercial version is the Camco Gen-Turi. It works well for moving generator exhaust fumes and noise upwards and dissipating it above the RV roof line.
Dutch
1995 Coachmen Catalina 322QBXL
F53 chassis, 460 V8, TST TPMS
Quadra Bigfoot EZ Levelers
2011 Toyota RAV4 4WD/Remco pump
ReadyBrute Elite tow bar/Blue Ox baseplate
|
gbopp
The Keystone State
Senior Member
Joined: 08/03/2008
View Profile
 Offline
|
You can also build you own version.
|
jetenbu
Southeast Texas
Senior Member
Joined: 08/03/2006
View Profile
Good Sam RV Club Member
Offline
|
I built my own when I had a motorhome. It is easy to do and can save you some major dollars.
Jim
RV: 2012 Montana 3625RE Quad Slide SKP#108921
TV: 2004 Dodge Dually 3500 HD
Favorite Quote: ''Life's tough, pilgrim, and it's even tougher if you're stupid.''-- John Wayne
Warning: THIS RIG PROTECTED BY SMITH AND WESSON!
U.S. Navy Vietnam Vet 1967-1968
|
Ivylog
Blairsville, Ga. USA
Senior Member
Joined: 06/30/2004
View Profile
Offline
|
I GOT CARRIED AWAY and spent $15 on this one. I made it out of alum 2"X4" gutter down spout and a 90 degree elbow. Already designed to slip together and cutting the 10' into two 5' is easy enough plus it makes it easy to store. 10' gets it above the roof.
You do not need the air gap, but it does lower the temp of the up pipe by 15 degrees to 120F.
The 4" suction cup came from Harbour Freight ($4) plus I had the white channel that slips into the joint. Not that it weighs all that much but the suction cup will support all the weight.
Putting a little paint on the two joints helps in putting it together. Just made another one for a friend and it cost $17.
This post is my opinion (free advice). It is not intended to influence anyone's judgment nor do I advocate anyone do what I propose.
04 Monaco Dynasty 42' quad slide
Where am I?
How I tow.
|
|
|
eHoefler
ozark mountains
Senior Member
Joined: 10/22/2011
View Profile
Offline
|
You can do like I did, find someone on E-Bay selling one fairly cheap. I paid >$50 delivered for mine.
2010 Ram 3500, Crew Cab, Long bed, 4 x 4,Dually, Lights & Siren!
2006 40' Landmark Mt. Rushmore
|
nvreloader
Western Nevada
Senior Member
Joined: 12/08/2006
View Profile
|
Thanks for the info and Ideas.
Don
|
rockhillmanor
On the Road
Senior Member
Joined: 12/06/2003
View Profile
|
Quote:You do not need the air gap, but it does lower the temp of the up pipe by 15 degrees to 120F.
Yes you DO need the air gap if you want your gen to last.
And 120 degrees or higher temp on a pipe along side your MH? again!
The Genturi Exhaust pipes are NOT hot to the touch good for you and passerby's AND safe for the wall of your MH. I don't leave home without mine and only wish they were 'mandatory' equipment for non/powershore events.
Home made pipes out of material that gets dangerously hot and not designed to prevent back pressure, is just IMHO an accident waiting to happen. Bet you put that bad boy away the first time some kid walks along side your MH and gets burned or your RV burns down!
This is just one add on that IMHO should not be homemade DYI. Spend the bucks on this one!
 AIR INTAKE OPENING
We must be willing to get rid of the life we've planned,
so as to have the life that is waiting for us.
|
NorthernLimits
Michigan
Senior Member
Joined: 11/17/2011
View Profile
Offline
|
rockhillmanor wrote:
Yes you DO need the air gap if you want your gen to last.
And 120 degrees or higher temp on a pipe along side your MH? again!
Home made pipes out of material that gets dangerously hot and not designed to prevent back pressure, is just IMHO an accident waiting to happen.
Please tell me how a 4 inch gutter will create backpressure even if it were welded to the 1 or 1.5 inch exhaust pipe of the gen.
|
sc3283
St Louis
Senior Member
Joined: 01/15/2008
View Profile
Offline
|
Mine is home made from PVC 3" pipe. The up pipe is the pcv, I have a 90 steel elbow that slips onto the gen tailpipe tightly that enters the pvc pipe in it's center. I can rest my cheek on my pvc pipe it is that cool. You do not have to spend any $ on a "factory made" item unless you choice. Viable alternatives do exist and work and work just fine.
